CRL-2

The Coral Series is a recessed LED downlight featuring an anti-glare optical diffuser for enhanced visual comfort. With an IP65 rating, it offers protection against rain and humidity, making it ideal for various environments. Designed for efficiency and high-quality lighting, this series incorporates advanced heat conduction technology with a durable aluminum body and heat-resistant optics, ensuring long-lasting performance.

Technical data

Print technical data
  • complies with the European standard
  • IP65
  • CE
LIGHT SOURCE Bridgelux
LED QUANTITY 1
MOUNTING CEILING RECESSED
LED COLOR 2700K/3000K/4000K
IP RATING IP65
DELIVERED LUMEN 80lm / W
RATED POWER 20 W
BEAM ANGLE 15º, 24º, 36º, 60º, Diffused Lens
BODY MATERIAL ALUMINUM
BODY FINISH WHITE,BLACK
LAMP LIFE 50,000 Hrs
CONNECTION OUTDOOR RATED CONNECTIONS

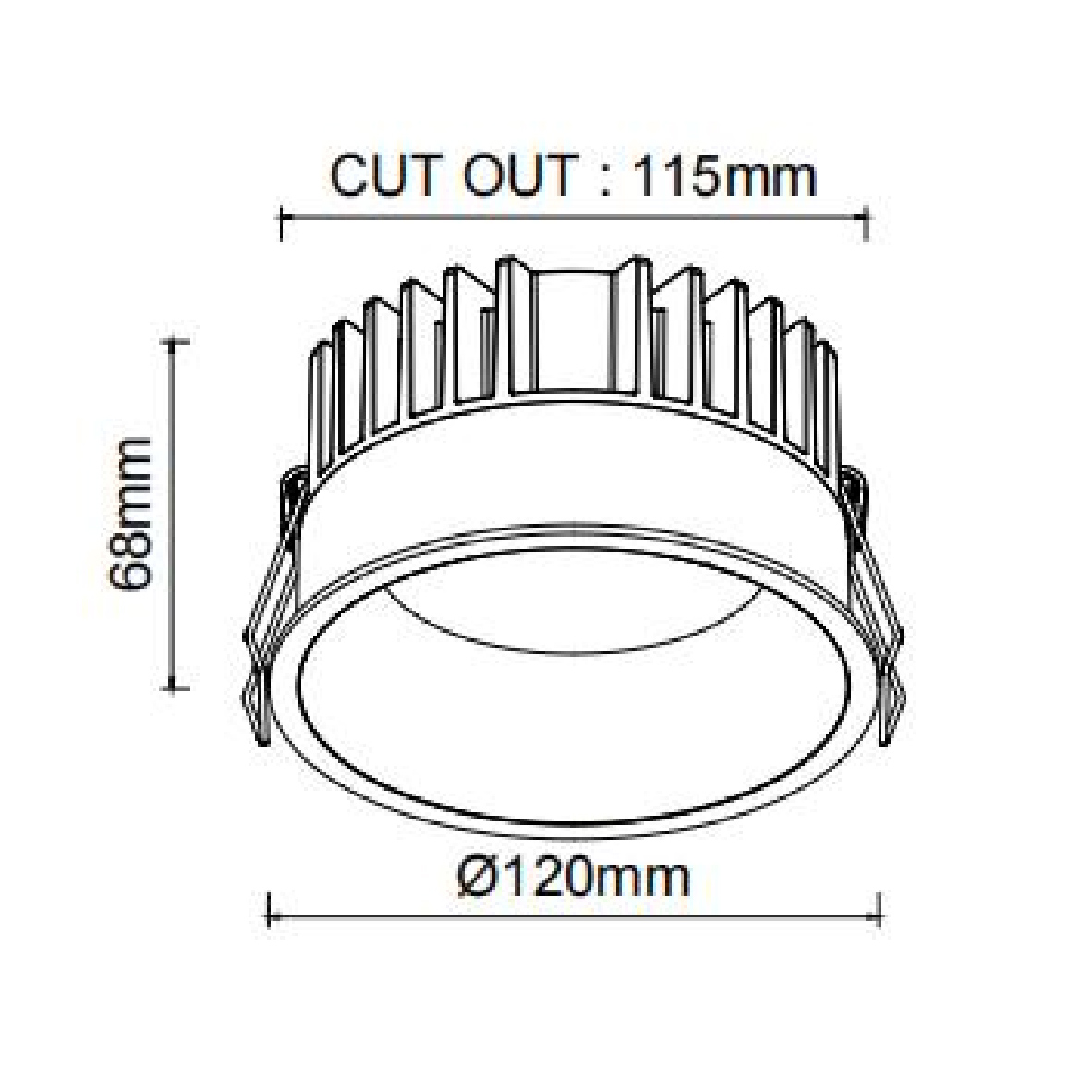

DIMENSIONS Ø120 x 68 mm
SUPPLY VOLTAGE 220-240 V AC
DRIVER / POWER SUPPLY DETAILS Switched
TRIAC
1-10V
DALI
DIMMING NON-DIMMABLE, TRIAC, 1-10V, DALI
CRI 90
IP RATING IP65
WORKING TEMP. -20° to +40°
CERTIFICATION CE, ROHS, CCC
LED TYPE COB
