LFX-N-16-24V-2835-120-DW

YYZ LFX Neon series is designed to provide a very bright, crisp consistent and homogenized illumination that will accentuate any building, structure, or artistic flourish. Using high brightness surface mounted LEDs, behind a first-class eco-friendly UV-resistant Silicone polymer encapsulated flexible chamber material, the LFX Neon will provide your project with bright, consistent traces of light in shades of White, single colors. The fixture consists of uniform and even lighting with no Led hotspot. LFX Neon has a transverse minimum radius of 60mm and is horizontal bendable. Easy to install, can be cut and reconnected with IP68 protected connector. The product is supplied in 5m standard rolls or custom as needed.

Technical data

Print technical data
  • complies with the European standard
  • IP68
  • UL
LIGHT SOURCE SMD LED 2835
LED QUANTITY 120 LEDs/m
MOUNTING Surface Mount / Recessed
LED COLOR 2200K + 5700K, 2700K + 5700K, 3000K + 5700K
IP RATING IP68
IK RATING IK08
RATED POWER 12 W/m
BEAM ANGLE 120°
BODY MATERIAL Silicone
BODY FINISH White
LAMP LIFE 70,000 Hrs, 50,000 Hrs
CONNECTION OUTDOOR RATED CONNECTIONS
CUTTING INCREMENTS 100 mm (3.94 in.)

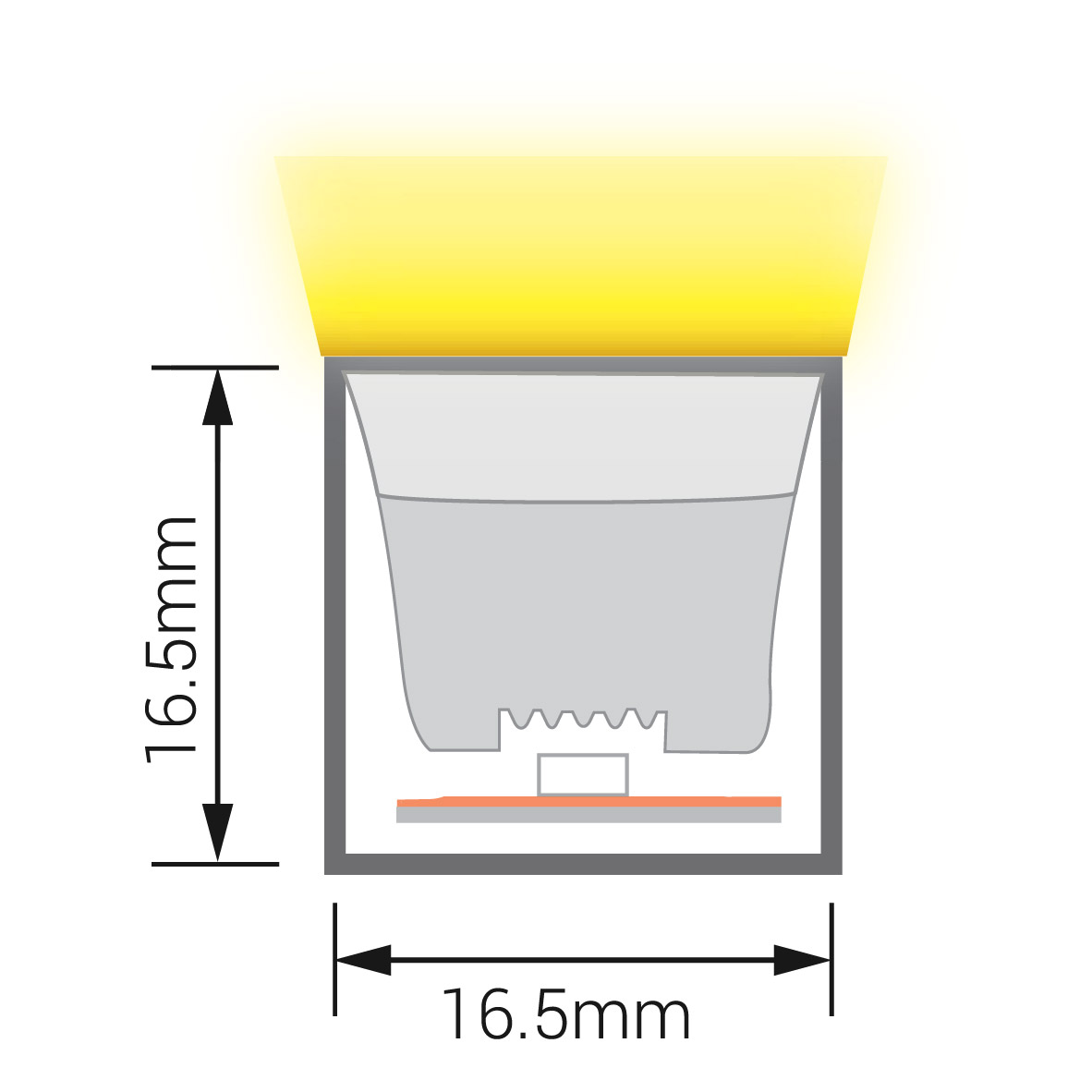

DIMENSIONS 16.5 mm (W) x 16.5 mm (H) / 0.65in(W) x 0.65 in (H)
MAX DAISY RUN 32.80ft / 10 m(Single Feed), 65.61 ft / 20 m (Double Feed)
SUPPLY VOLTAGE 24V DC
DRIVER / POWER SUPPLY DETAILS DALI
DMX
PWM
DIMMING DALI, DMX, PWM
CRI 80, 90
IP RATING IP68
WORKING TEMP. -40°C to +55°C
