YYZ Opera general downlight series are best suited for architectural in addition to general lighting since it enables symmetrical light distribution to get an effective task, accent or general lighting. Wide range of wattage options from 7W to 42W are available making it versatile for applications with mounting heights from 2.8m to 10m. It has carefully designed optics that ensure UGR<19 even with ultra-wide distribution.
| LIGHT SOURCE | LUMILEDS/CITIZEN |
|---|---|
| MOUNTING | CEILING RECESSED |
| LED COLOR | 2700/3000/3500/4000 K |
| IP RATING | IP20/44 |
| DELIVERED LUMEN |
90lm/W |
| RATED POWER | 32/42 W |
| BEAM ANGLE | 55º |
|---|---|
| BODY MATERIAL | ALUMINUM |
| BODY FINISH | BLACK, WHITE |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | INDOOR RATED CONNECTIONS |
| DIMENSIONS | Ø185 x 180 mm |
| SUPPLY VOLTAGE | 220-240V AC |
| DRIVER / POWER SUPPLY DETAILS |
ON/OFF TRIAC 1-10V DALI |
| DIMMING | NON-DIMMABLE, TRIAC, 1-10V, DALI |
| CRI | 90+, SDCM<3 |

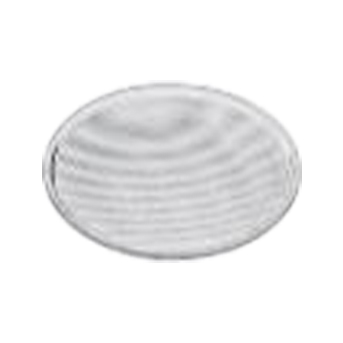

 Linear spread lensBeam Control Linear Spread Lens. |

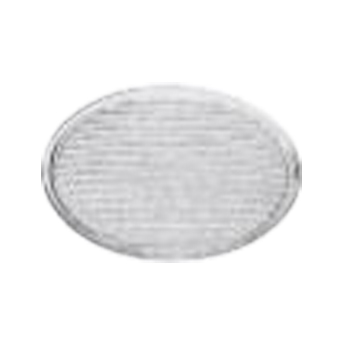

 Spread lensstretch a beam in both directions to cover an expanse of wall. |
Rated Power : 7W
Supply Voltage : 220-240V AC
Mounting : CEILING RECESSED
Rated Power : 10/15 W
Supply Voltage : 220-240V AC
Mounting : CEILING RECESSED
Rated Power : 15/20 W
Supply Voltage : 220-240V AC
Mounting : CEILING RECESSED
Rated Power : 20/28 W
Supply Voltage : 220-240V AC
Mounting : CEILING RECESSED
Rated Power : 28/32 W
Supply Voltage : 220-240V AC
Mounting : CEILING RECESSED
