Pole
ZEBRA POLE

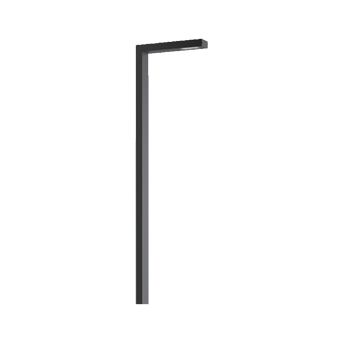

YYZ Zebra Pole Light combines a lighting pole/column and arm into a single rectangular section. This design allows for the placement of two light points at different directions and heights on the same pole. The product is ideal for illuminating streets, avenues, residential areas, and pedestrian zones. It is available in Type 2, Type 3, and Type 4 light distribution classifications for roadways. The poles are offered in heights ranging from 3.5m to 8m. Both the pole section and the arm section are made of extruded 6063 T5 aluminum with a low copper content, measuring 200mm wide and 150mm thick. The pole features a weather-sealed door opening of 400mm x 100mm for installing an MCB/Fuse cutout (to be supplied by others). The outreach length of the arm can be customized within structural limits. The pole's base plate dimensions are 400mm x 400mm x 15mm thick and come complete with four M24 x 500mm long L Anchor Bolts, along with two nuts and two washers per anchor bolt.
