LINEAR FLEX WASHER

YYZ LFW wall washer performs to give the ideal solution in achieving a flawless wall washing effect. Streamlined design with highly focused and direction beam from a PMMA lens with silicone encapsulation. Backed with high quality aluminium profile for thermal management and adjustable brackets for effective installation. Modular system available in standard lengths and can be customized as per project requirements. IP67 structural waterproof making it desirable for a wide range of applications like wall grazing, linear and indirect illumination for exterior architectural, retail and hospitality applications.

Technical data

Print technical data
  • complies with the European standard
  • IP67
  • ETL
LED QUANTITY 42 LED/MTR(Symmetric), 30 LED/MTR(Asymmetric)
MOUNTING Surface Mount
LED COLOR 2500/2700/3000/3500/4000/6000 K
IP RATING IP67
DELIVERED LUMEN 2260lm(Symmetric)
1662lm(Asymmetric)Lumen Per Meter @ 3000K
RATED POWER 20 W/mtr
BEAM ANGLE SYMMETRIC 20° & 30°, ASYMMETRIC 120°x60°
LAMP LIFE 50,000 hrs
CONNECTION 2 PIN join connector
CUTTING INCREMENTS Symmetric - 166.6 mm/7 LEDs, Asymmetric - 166.6 mm/5 LEDs
DIMENSIONS 30 x 37 mm
WIRING 2 PIN Male Connection Cable, 2 PIN Female Connection Cable
SUPPLY VOLTAGE 24V DC
DRIVER / POWER SUPPLY DETAILS ON/OFF
DALI
DIMMING DALI
CRI 80+
OPTIONS AVAILABLE LENGTH_

500MM; 1000MM; 2000MM; 3000MM; 4000MM; 5000MM; 10000M

Read more

Close

Accessories and power supply units

Accessories (9)

Accessory

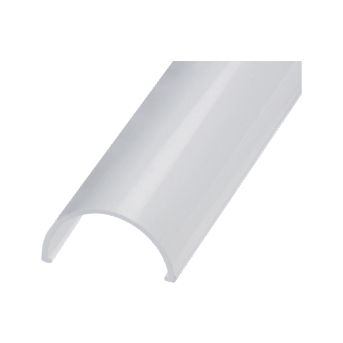

PC Cover

Accessory


Accessory

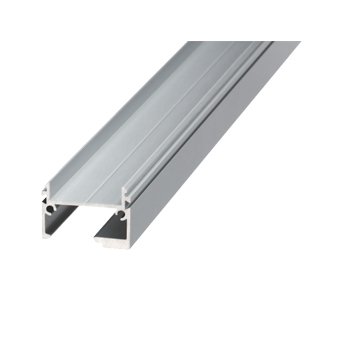

Aluminum profile

Accessory


Accessory

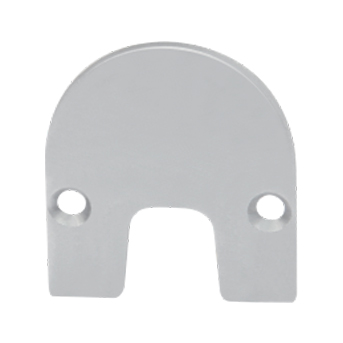

End Cap

Accessory


Accessory

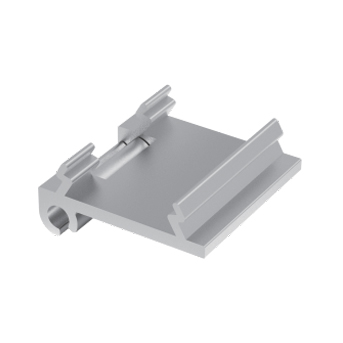

Metal mounting clip

Accessory


connector

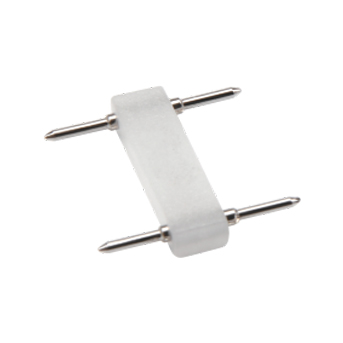

2 PIN join connector

Accessory


connector

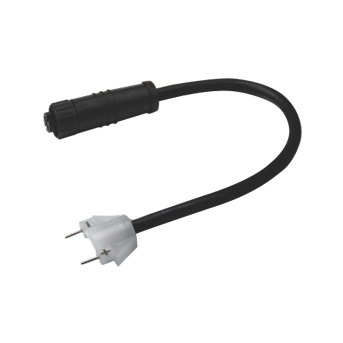

2 PIN Male Connection Cable

Accessory


connector

2 PIN Female Connection Cable

Accessory


Accessory

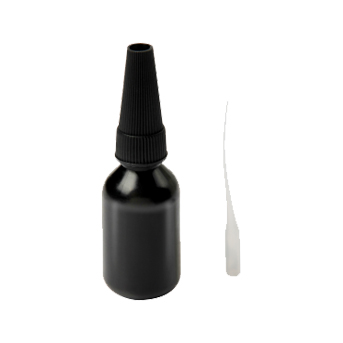

UV glue

Accessory


Accessory

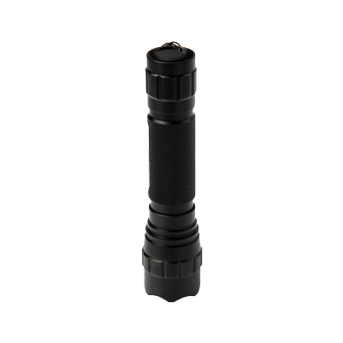

UV light

Accessory


Power supply units (0)

No Power Supply Units associated with this product

Control gear (0)

No Control Gears associated with this product
