YYZ Tusker downlight series are anti-glare architectural lighting with symmetric light distribution having UGR<16. It has beautifully shapred aluminum reflector that uses an innovative technology and is available in a varity of colors. The variety of sizes promote the power range from 7W-30W.
| INSTALLATION | IC Type, Easy installation with J-box (no housing needed) |
|---|---|
| MOUNTING | CEILING RECESSED |
| LED COLOR | 2700/3000/4000/5000/6500K |
| IP RATING | IP44 |
| DELIVERED LUMEN |
100 lm/W |
| RATED POWER | 20W |
| BEAM ANGLE | 30°, 45° |
|---|---|
| BODY MATERIAL | ALUMINIUM |
| BODY FINISH | WHITE,BLACK |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | INDOOR RATED CONNECTIONS |

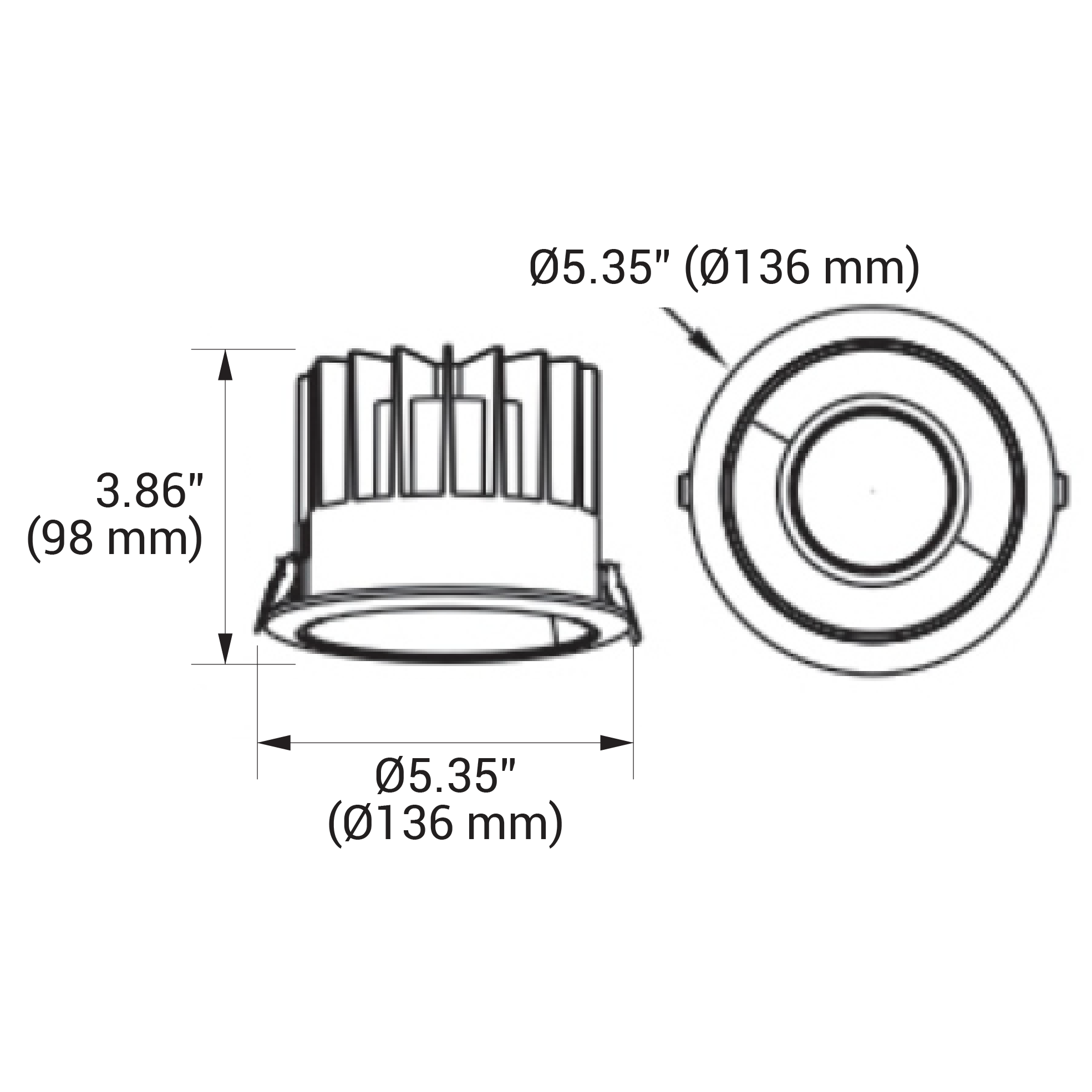

| DIMENSIONS | Dia. 5.35”, 3.86” ht. (Cutout Dia. 4.56”), Dia. 136 mm, 98 mm ht. (Cutout Dia. 116 mm) |
| SUPPLY CURRENT | 120-277V AC |
| DRIVER / POWER SUPPLY DETAILS |
ON/OFF; TRIAC; 0-10V |
| CRI | 90 |
| NOTES |
UGR : UGR <16 |
Rated Power : 7W
Supply Voltage : 120-277V AC
Mounting : CEILING RECESSED
Rated Power : 30W
Supply Voltage :
Mounting : CEILING RECESSED
Rated Power : 12W
Supply Voltage : 120-277V AC
Mounting : CEILING RECESSED
Rated Power : 18W
Supply Voltage :
Mounting : CEILING RECESSED
