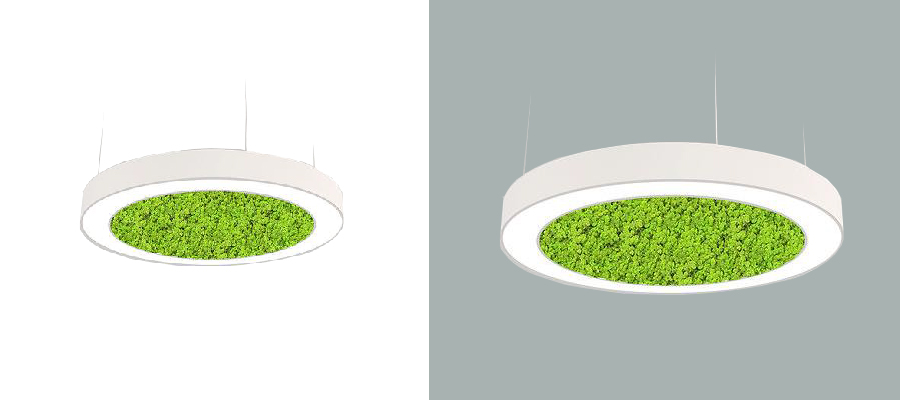

SNC-A ROUND 2-R2

YYZ Sonic series luminaires are developed using dried natural moss to create a Biophilic design inthe indoor work space to enhance occupant's connectivity to the natural environment. Constructed in Aluminium housing with opal diffuser as light optic gives an even illumination. Apart from the standard configurations, it can be custom built to various shapes as per the client's design. Various options of light distribution- up, down, up/down and the percentage of the light component can be to the requirements of the client. Wide range of custom colors for the light frame to suit the ambience.

Technical data

Print technical data
  • complies with the European standard
  • IP20
LIGHT SOURCE CREE / OSRAM / NICHIA / SAMSUNG
MOUNTING SURFACE / PENDANT / RECESSED
LED COLOR 2700/3000/4000/6500K
IP RATING IP20
DELIVERED LUMEN 1500lm
2200lm
3000lm
RATED POWER 28W, 42W, 56W
BEAM ANGLE 120°
BODY FINISH White, (Option of custom color)
LAMP LIFE L70, B50, 75,000 HRS
CONNECTION INDOOR RATED CONNECTIONS
DIMENSIONS 600mm x H88mm(28W), 900mm x H88mm(42W),1200mm x H88mm(56W)
SUPPLY VOLTAGE 220-240 V AC
DRIVER / POWER SUPPLY DETAILS ON/OFF
DALI
0-10V
DIMMING NON-DIMMABLE, DALI, 0-10V
CRI 80+,90+
NOTES SDCM : 3 SDCM (Standard); 2 SDCM upon request
LIGHTING DISTRIBUTION : Direct (D); Indirect (I)
Direct / Indirect (D/I)
