LFC-G-O

YYZ LFC series linear LED light fixtures are a simple, yet elegant solution for wall washing and grazing applications where crisp, single color light is desired along a wall or ceiling. LFC series is a new improvised version of YYZ Easy Grazer product which can be installed in large or small scale projects. The use of elliptical optics ensures smooth lighting across the entire surface with optimal overlap between LEDs, and little spill or throw beyond the illuminated plane.

Technical data

Print technical data
  • complies with the European standard
  • IP67
LIGHT SOURCE Top quality surface mount LED with variable drive current
LED QUANTITY 7 LEDs /ft
MOUNTING SWIVEL BRACKET
LED COLOR 2200/2700/3000/3500/4000/5000/5700/6000/6500K/RED/GREEN/BLUE/AMBER
IP RATING IP67
DELIVERED LUMEN 4.8W - 380 lm/ft (2200K); 500 lm/ft (2700K);500 lm/ft (3000K); 500 lm/ft (3500K); 500 lm/ft (4000K); 510 lm/ft (5000K); 510 lm/ft (5700K); 510 lm/ft (6000K); 510lm/ft (6500K);120lm/ft (BLUE);370lm/ft (GREEN);200lm/ft (RED); 230 lm/ft (AMBER) 7.2W - 560lm/ft (2200K); 720 lm/ft (2700K); 720 lm/ft (3000K); 720 lm/ft (3500K); 720 lm/ft (4000K); 750 lm/ft (5000K); 750 lm/ft (5700K); 750 lm/ft (6000K); 750 lm/ft (6500K); 160 lm/ft (BLUE); 510 lm/ft (GREEN); 300 lm/ft (RED); 350 lm/ft (AMBER); 9.6W - 720 lm/ft (2200K); 930 lm/ft (2700K); 930 lm/ft (3000K); 930 lm/ft (3500K); 930 lm/ft (4000K); 970 lm/ft (5000K); 970 lm/ft (5700K); 970 lm/ft (6000K); 970 lm/ft (6500K); 210 lm/ft (BLUE); 610 lm/ft (GREEN); 400 lm/ft (RED); 440 lm/ft (AMBER); 12W - 880 lm/ft (2200K); 1150 lm/ft (2700K); 1150 lm/ft (3000K); 1150 lm/ft (3500K); 1150 lm/ft (4000K); 1200 lm/ft (5000K); 1200 lm/ft (5700K); 1200 lm/ft (6000K); 1200 lm/ft (6500K); 250 lm/ft (BLUE); 710 lm/ft (GREEN); 500 lm/ft (RED); 520 lm/ft (AMBER)
RATED POWER 4.8 W/ft , 7.2 W/ft , 9.6 W/ft , 12 W/ft
BEAM ANGLE 13°, 18°, 30°, 45°, 60°, 15x45°
CONNECTION IP CONNECTOR
MAX DAISY RUN @120V - 175 ft / 50 m; 115 ft / 30 m; 85 ft / 25 m, 70 ft / 20 m;, @230V - 340 ft / 100 m (4.8W); 225 ft / 65 m (7.2W); 160 ft / 50 m (9.6W); 140 ft / 40 m (12 W)
SUPPLY VOLTAGE 105-277V AC
CRI 80

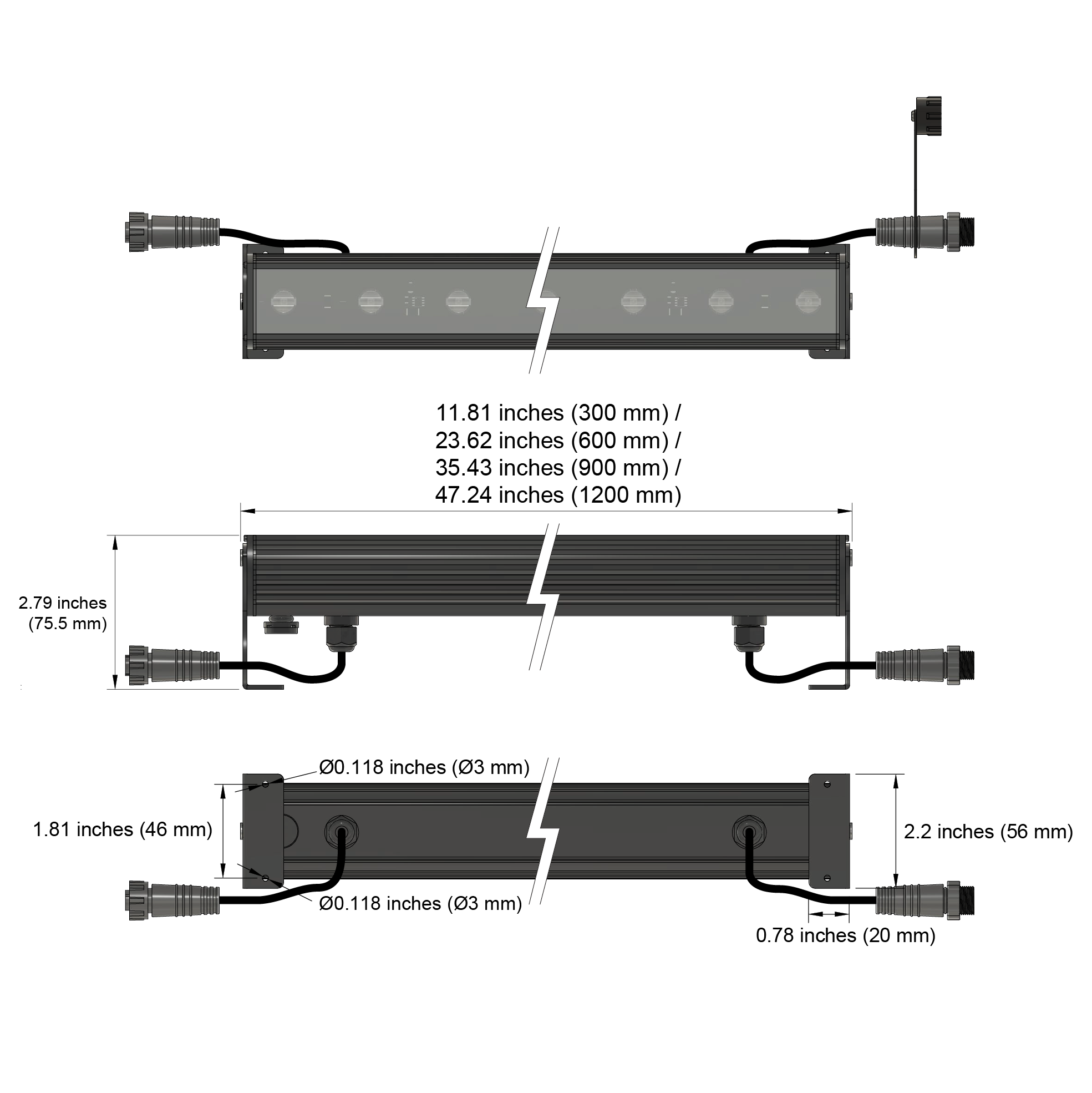

NOTES LENGTH : 12 - 12inch / 300mm
24 - 24inch / 600mm
36 - 36inch / 900mm
48 - 48inch / 1200mm
